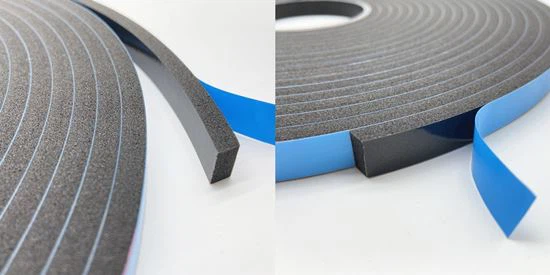

Double Sided Structural Glazing PVC Foam Tape
Our Double Sided Structural Glazing PVC Foam Tape is a high-quality product designed to provide excellent bonding strength and long-lasting performance to various materials. This double-sided tape is specifically engineered for structural glazing applications, and it is an ideal solution for architects, contractors, and manufacturers looking for a reliable and cost-effective bonding solution.
The Double Sided Structural Glazing PVC Foam Tape is made from a high-performance PVC foam core, coated with a specially formulated acrylic adhesive on both sides. This combination of materials creates a strong, reliable bond that can withstand harsh environments and extreme temperatures. With its superior adhesive strength and long-lasting performance, this tape is suitable for a wide range of structural bonding applications, including curtain wall construction, window glazing, and bonding of solar panels.
The structural glazing tape is available in varying thicknesses from 0.5mm to 3mm, and the width can be customized based on the requirements of the application. Our tape is designed to bond various materials such as glass, aluminum, stainless steel, polycarbonate, painted surfaces, and many more. Its excellent conformability allows it to bond irregular and curved surfaces effectively.
The structural glazing tape has several unique features that set it apart from other similar products. Firstly, it has excellent weather resistance and UV stability, making it suitable for both indoor and outdoor use. It is also water-resistant, preventing water from penetrating the bond line, and its high-temperature resistance ensures that it will not fail even under extreme heat conditions. Its flexibility is another advantage, allowing it to absorb shock and vibration without losing its bonding strength.
Our Double Sided Structural Glazing PVC Foam Tape is easy to install and can be applied with minimal surface preparation. Simply cut the tape to the desired length, peel off the release liner, and apply the adhesive side to the surface to be bonded. The tape offers instant bonding, reducing the need for clamps or other mechanical fasteners. Once applied, it offers a quick and clean installation, free from any residue or mess.
One of the benefits of using our structural glazing tape is its cost-effectiveness. It offers a faster, cleaner, and easier alternative to traditional bonding techniques, reducing labor costs and installation time. Its long-lasting performance also ensures that you will not need to replace it often, which results in significant savings in the long run.
In conclusion, our Double Sided Structural Glazing PVC Foam Tape is an ideal bonding solution for structural glazing applications. Its superior adhesive properties, excellent weather resistance, and ease of use make it an outstanding choice for architects, contractors, and manufacturers looking for a reliable and cost-effective bonding solution. Contact us today to find out how our structural glazing tape can help you in your next project.
Product description:
Hollyseal® Double sided adhesive PVC foam tape consists of a durable acrylic adhesive with viscoelastic properties. This provides an extraordinarily strong double sided foam tape that adheres to a range of substrates, including aluminum, painted aluminum and glass. Our bonding tapes provide excellent strength, conformability, surface adhesion and temperature resistance. The Double sided adhesive PVC foam tape family is used to attach glass panels to metal frames in curtain wall systems, commercial windows and doors, skylight and canopy systems replacing commonly used mechanical fasteners, gaskets and structural silicone sealants.

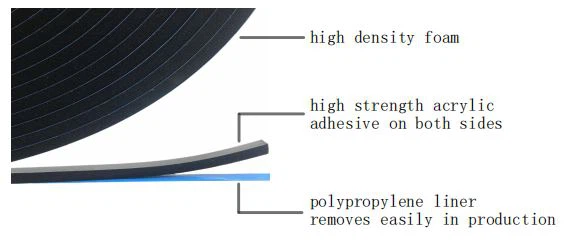

Product structural：
● Release liner▕ Polypropylene liner
● Adhesive▕ Acrylic adhesive
● Foam▕ PVC,black
Features:
● Excellent heat and sound insulation
● Thicknesses from 0.5 mm up to 16 mm
● Strong internal structure resists tearing
● High shore hardness giving guaranteed joint thickness
● Creates a permanent seal against water, moisture and more
● Used as an alternative to structural silicone and spacer tapes/gaskets
● Good resistance under light of oil, solvent, heat, and humidity conditions
Technical Information:
| Density | 350±50kg/m3 |
| Shore 00 Hardness | 80±10° |
| Tensile Strength | ≥800kPa |
| Force to Compress | ≥50kPa |
| Elongation | ≥70% |
| 180°Peel Strength | 0.82N/mm |
| 30% Compression set | ≤7% |
| Flamability | UL94 HBF/HF-1/V-0 FMVSS 302 (Available in customized) |
Application:

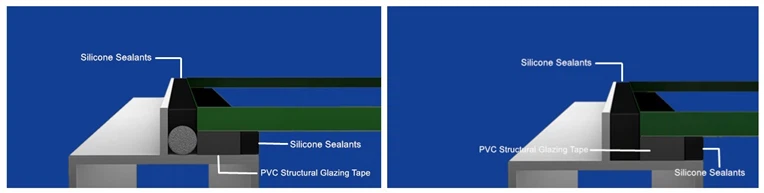

● Ideally used for glazing on UPVC, aluminium and wooden window systems between glass and frame or beading in both internal and external seals.
● Heating and ventilating industry - Used to seal panelling to the framework of air handling units to prevent air escape and vibration within the units.

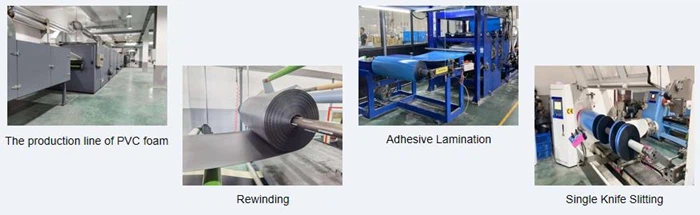

Production process
